Cytology Brushes

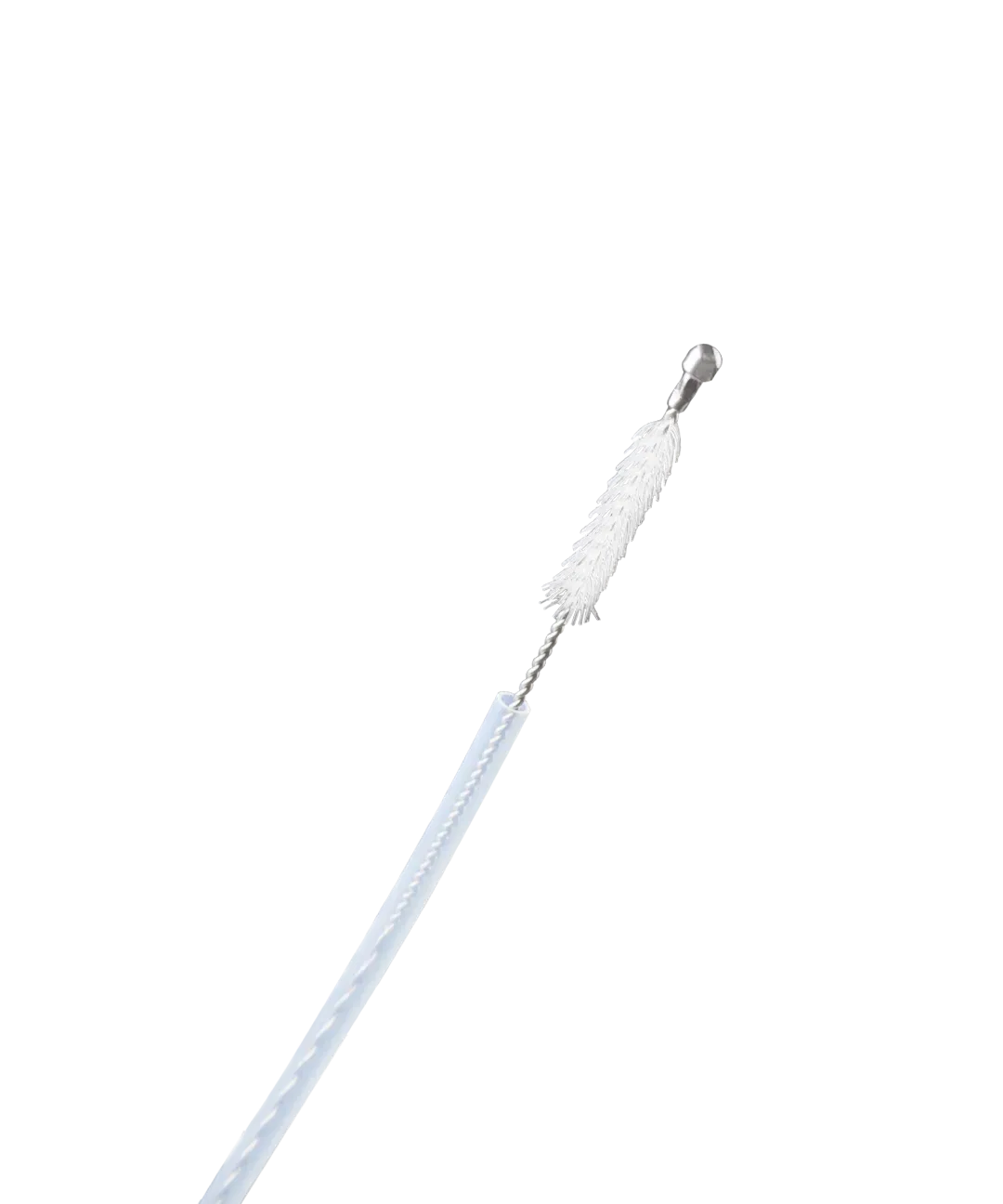

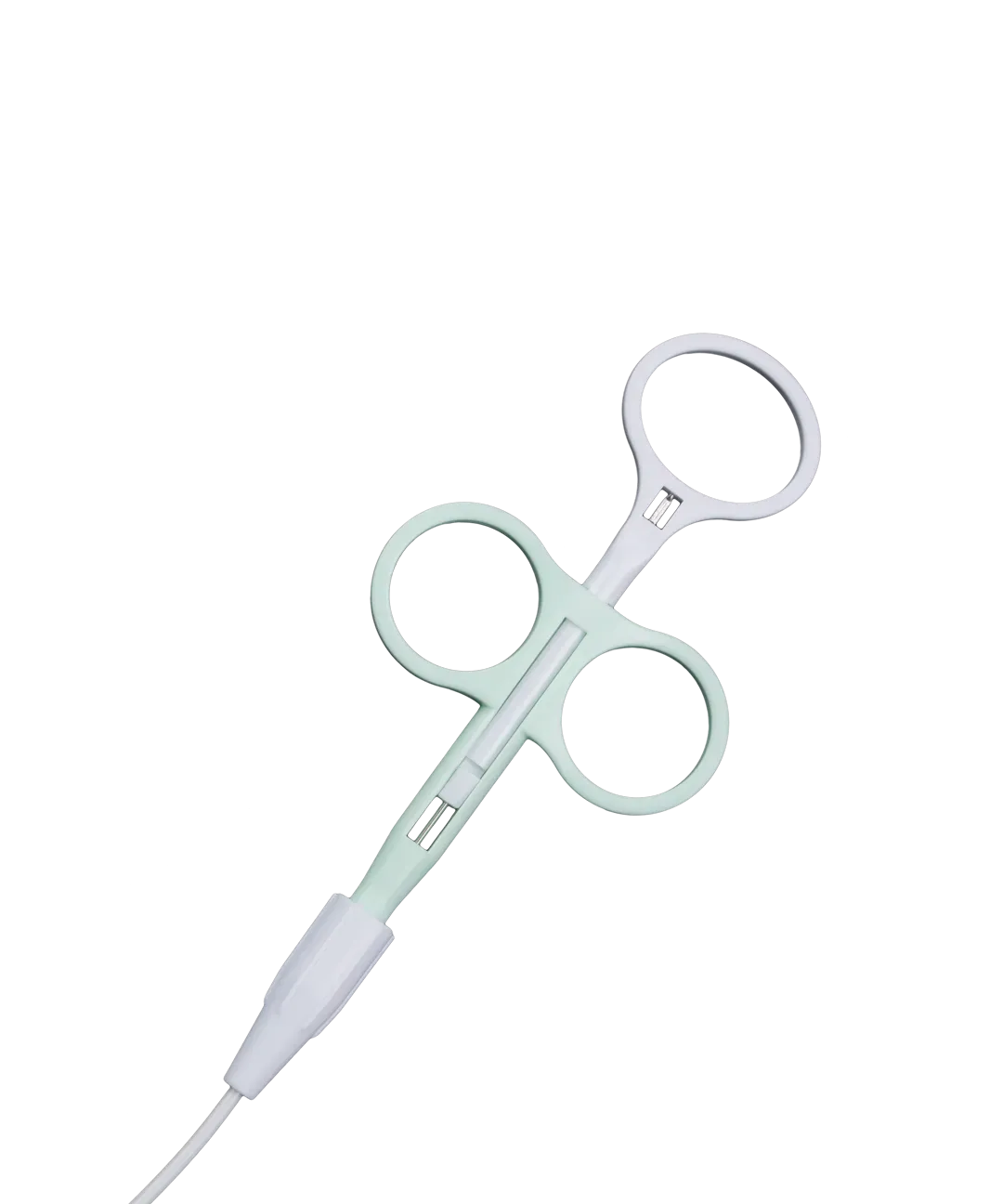

The MICRO-TECH cytology brushes for endoscopy can be very easily pushed forward to the desired site through the endoscope and the lesion can then actually be brushed off without effort. The thin bristles enable a tissue-sparing cytologic smear. The plastic tube and the distal ball for closure protect the tissue sample when the device is retracted. A potential contamination of the sample or even a loss of sample is thus excluded.

KEY BENEFITS

Thin brushes for an optimal collection of cells
Includes plastic tube and metal head for closure
For endoscopes with a working channel diameter above 2.0 mm
Sterile single packaging

CATALOG

SPECIFICATION

Cytology Brush
REF	Brush Diameter (mm)	Brush Length (mm)	Catheter O.D.	Channel Size (cm)	Working Length (mm)	Packaging
CYB-18S-16C	1.8	11.5	2.3	≥Ф2.8	1600	20/Box
CYB-18S-18C	1.8	11.5	2.3	≥Ф2.8	1800	20/Box
CYB-24S-12C	2.4	11.5	1.8	≥Ф2.0	1200	20/Box
CYB-24S-18C	2.4	11.5	2.3	≥Ф2.8	1800	20/Box
CYB-24S-24C	2.4	11.5	2.3	≥Ф2.8	2400	20/Box
CYB-30S-12C	3	11.5	1.8	≥Ф2.0	1200	20/Box
CYB-30S-16C	3	11.5	2.3	≥Ф2.8	1600	20/Box
CYB-30S-18C	3	11.5	2.3	≥Ф2.8	1800	20/Box
CYB-30S-23C	3	11.5	2.3	≥Ф2.8	2300	20/Box
CYB-30S-24C	3	11.5	2.3	≥Ф2.8	2400	20/Box
CYB-40S-12C	4	11.5	1.8	≥Ф2.0	1200	20/Box
CYB-40S-16C	4	11.5	2.3	≥Ф2.8	1600	20/Box
CYB-40S-18C	4	11.5	2.3	≥Ф2.8	1800	20/Box
CYB-40S-24C	4	11.5	2.3	≥Ф2.8	2400	20/Box
CYB-50S-23C	5	11.5	2.3	≥Ф2.8	2300	20/Box
